nose gear suspension

seanmcnally
Posts: 10
Joined: Wed Mar 03, 2021 9:37 pm

nose gear suspension

Post by seanmcnally »

Can anyone please post photos diagrams or build manual for the nose wheel suspension.
I have bought a CT but it has had a previous acident and now only has been repaired with a fixed rod and no suspension.
jchisolm
Posts: 86
Joined: Tue Jun 17, 2014 9:56 pm

Re: nose gear suspension

Post by jchisolm »

Look in this section and find the message about "folder of documents" or something like that. Look around and you will find some of the 2000 docs. I'm not sure if the original CT docs have the install procedure.
Here is a direct link to the 2000 doc that may give you some help.
http://www.express-builder.com/document ... ion%5d.pdf

Also search for messages about nose gear issues and look at:
http://www.compairtechllc.com/Nose_Gear.asp
I was able to still access that page today.
Joe Chisolm
Express CT builder
Marble Falls, Texas
seanmcnally
Posts: 10
Joined: Wed Mar 03, 2021 9:37 pm

Re: nose gear suspension

Post by seanmcnally »

Thanks Mate,
I have seen both of these but wasnt sure if the original CT has the same Mooney type rubber disk suspension
seanmcnally
Posts: 10
Joined: Wed Mar 03, 2021 9:37 pm

Re: nose gear suspension

Post by seanmcnally »

This is a pick of what is on mine.

If anyone can post a pick of what its supposed to be i would be grateful
Attachments
seanmcnally
Posts: 10
Joined: Wed Mar 03, 2021 9:37 pm

Re: nose gear suspension

Post by seanmcnally »

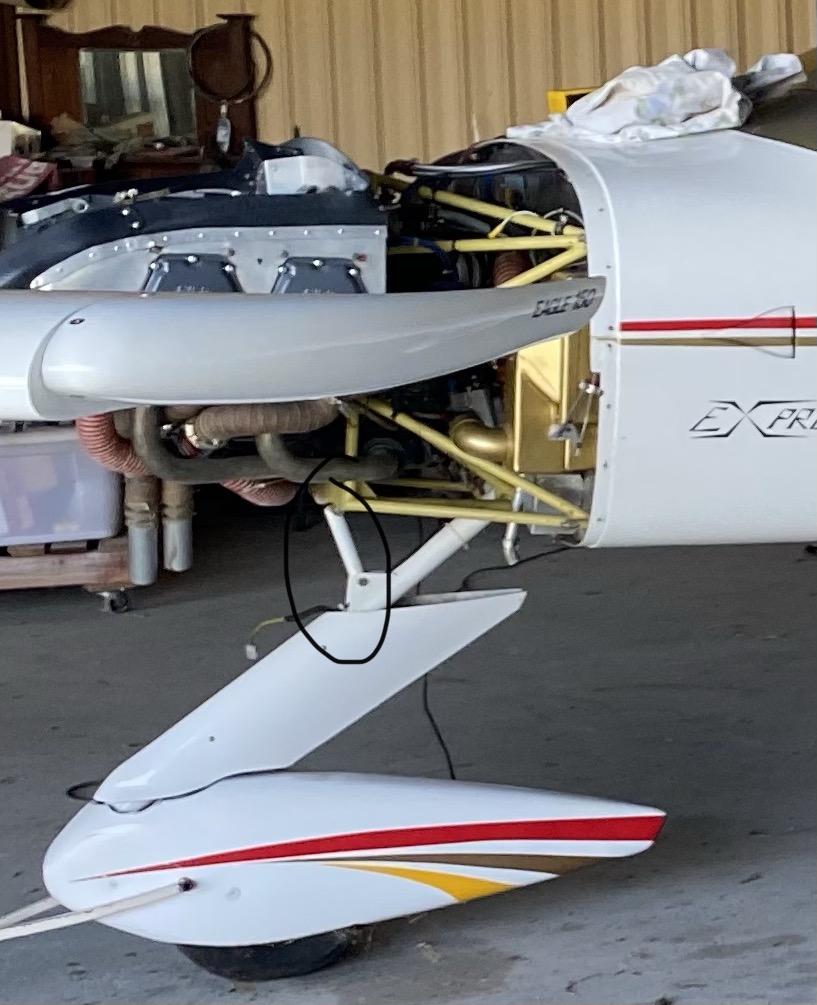

Can someone please post a pic of whats supposed to be in the circled area.
jchisolm
Posts: 86
Joined: Tue Jun 17, 2014 9:56 pm

Re: nose gear suspension

Post by jchisolm »

I think it should be the doughnut shown in the manual. I'm not sure where wheeler got them. I dont think they were custom built. Mine is in a box some where. When I find it I'll look for a part number. Hopefully someone else on here knows the answer.
Joe Chisolm
Express CT builder
Marble Falls, Texas
jchisolm
Posts: 86
Joined: Tue Jun 17, 2014 9:56 pm

Re: nose gear suspension

Post by jchisolm »

See PDF attachment. I found mine and it does look like it's a custom built part. You will probably have to get something made or perhaps someone on the forum knows of a source.
Attachments
Procedure 9.010 [Nose Gear Strut Installation].pdf
Procedure 9.010 Installation of Nose Gear Strut
(112.68 KiB) Downloaded 19 times
Joe Chisolm
Express CT builder
Marble Falls, Texas
seanmcnally
Posts: 10
Joined: Wed Mar 03, 2021 9:37 pm

Re: nose gear suspension

Post by seanmcnally »

thanks mate any chance of some photos of yours in case i have to get one made here in OZ
jchisolm
Posts: 86
Joined: Tue Jun 17, 2014 9:56 pm

Re: nose gear suspension

Post by jchisolm »

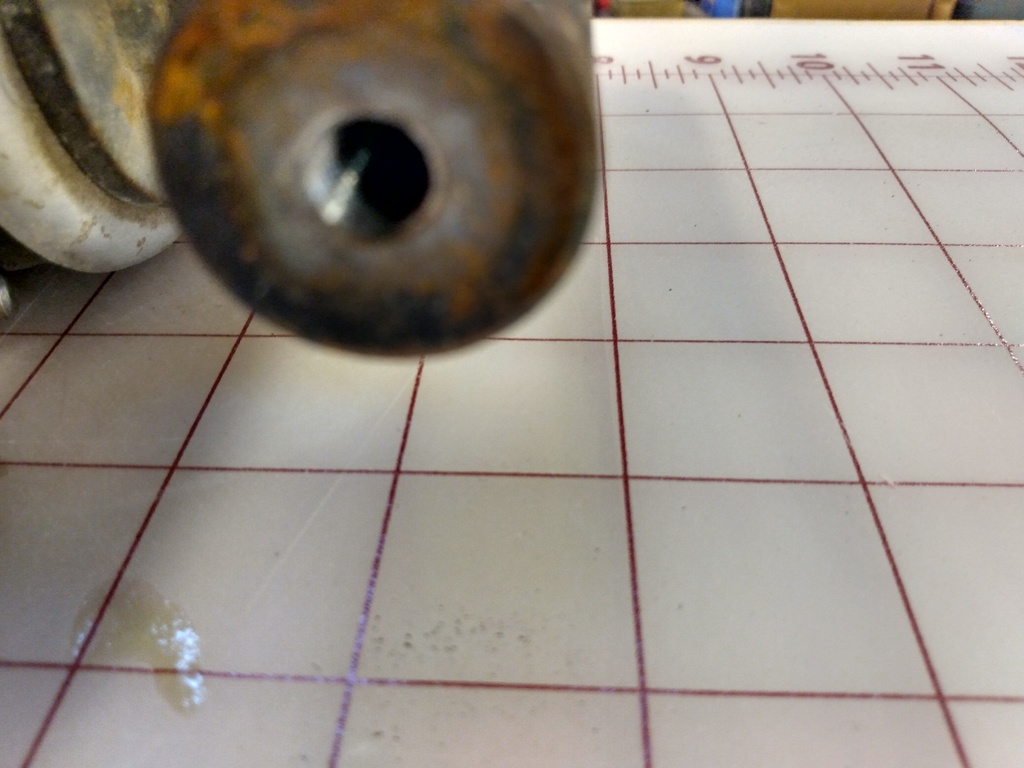

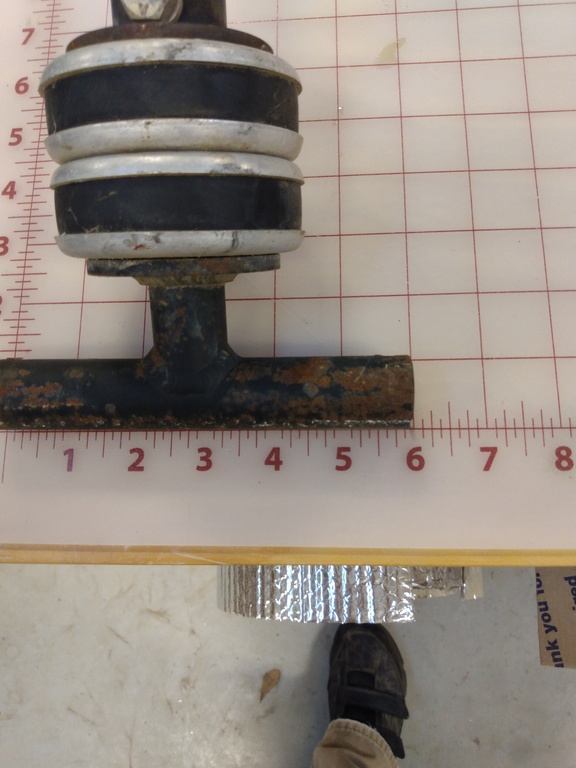

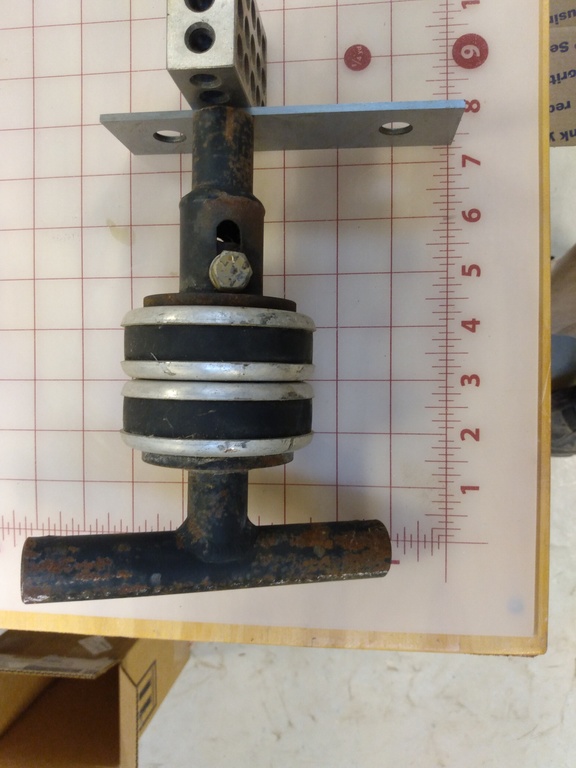

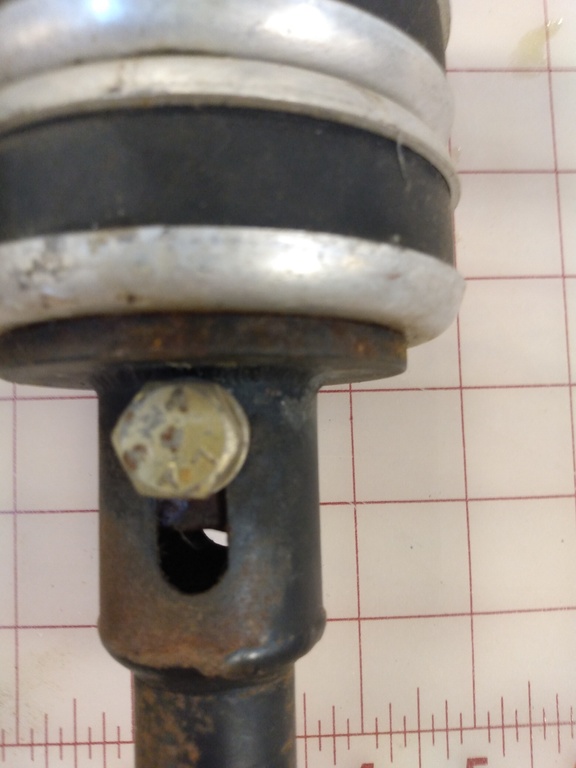

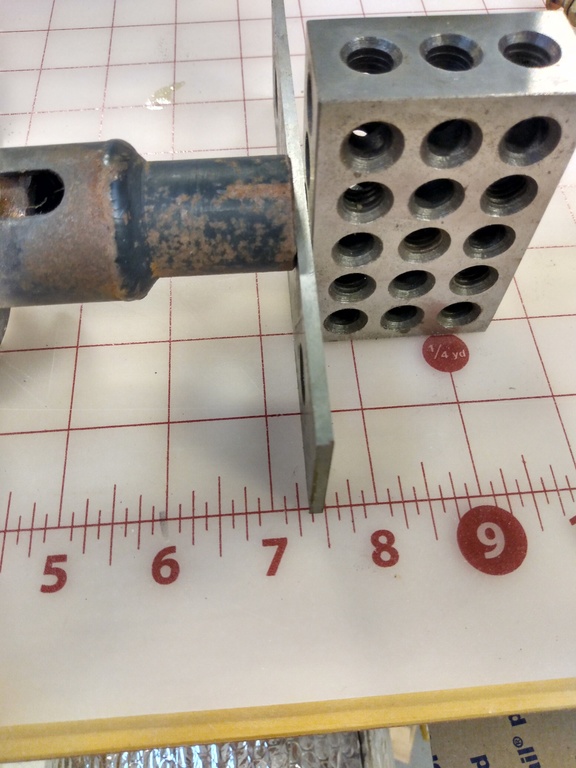

Here are some pictures of mine. It's been sitting in a box for a long time.
Mine does not have a lower bolt hole. I dont remember if I got it from Wheeler or Larry Olsen.
Looking for specs on the rubber disk has been difficult but I did find that Vans RV10 and RV14 use a similar nose gear setup. The loads on the RV10 would probably be somewhat similar to a Wheeler. The interesting thing is Vans uses 4 disc, like a Money NG. Where as Wheeler only uses 2.
I wonder if some of the nose gear issues are related to the shock strut bottoming out because there are not enough disc.

Hopefully this will help you.
Attachments
Joe Chisolm
Express CT builder
Marble Falls, Texas
Guapo
Posts: 5
Joined: Thu Jan 11, 2018 8:26 pm

Re: nose gear suspension

Post by Guapo »

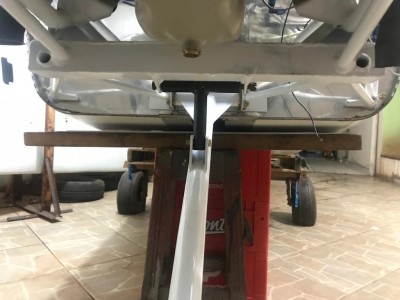

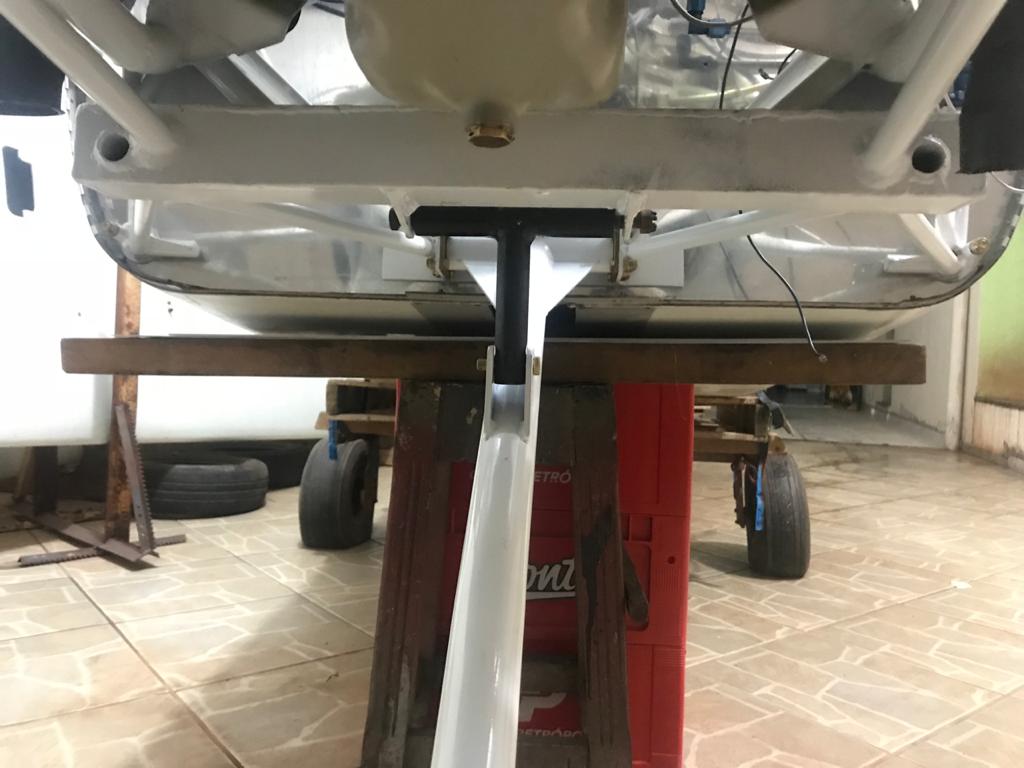

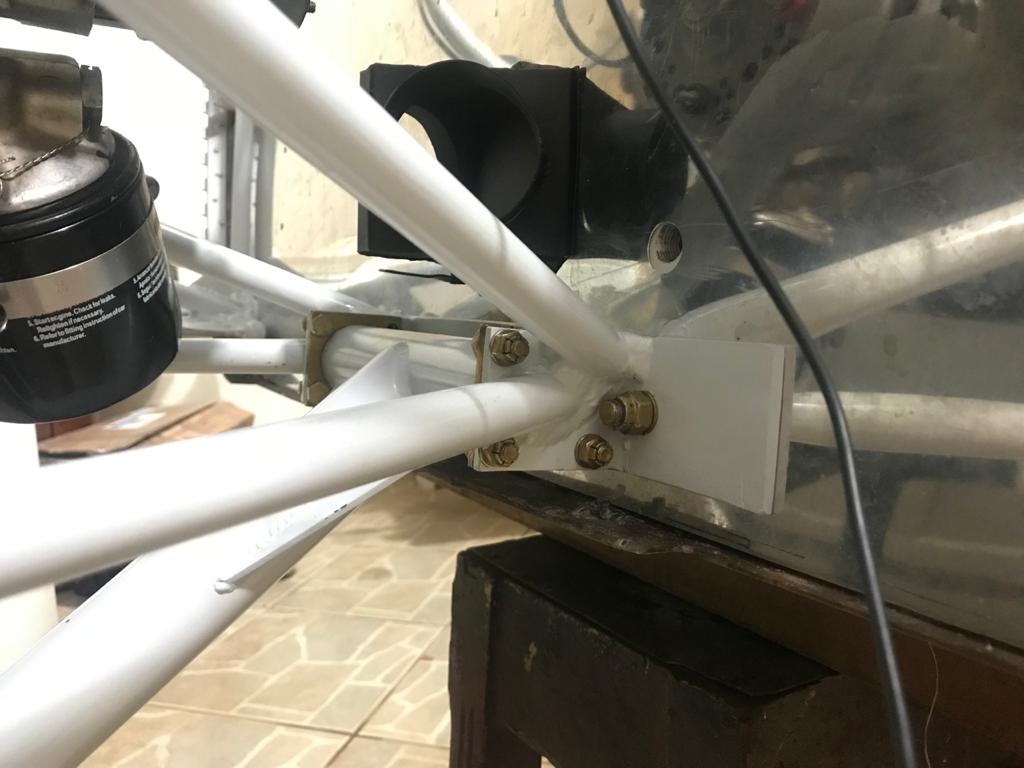

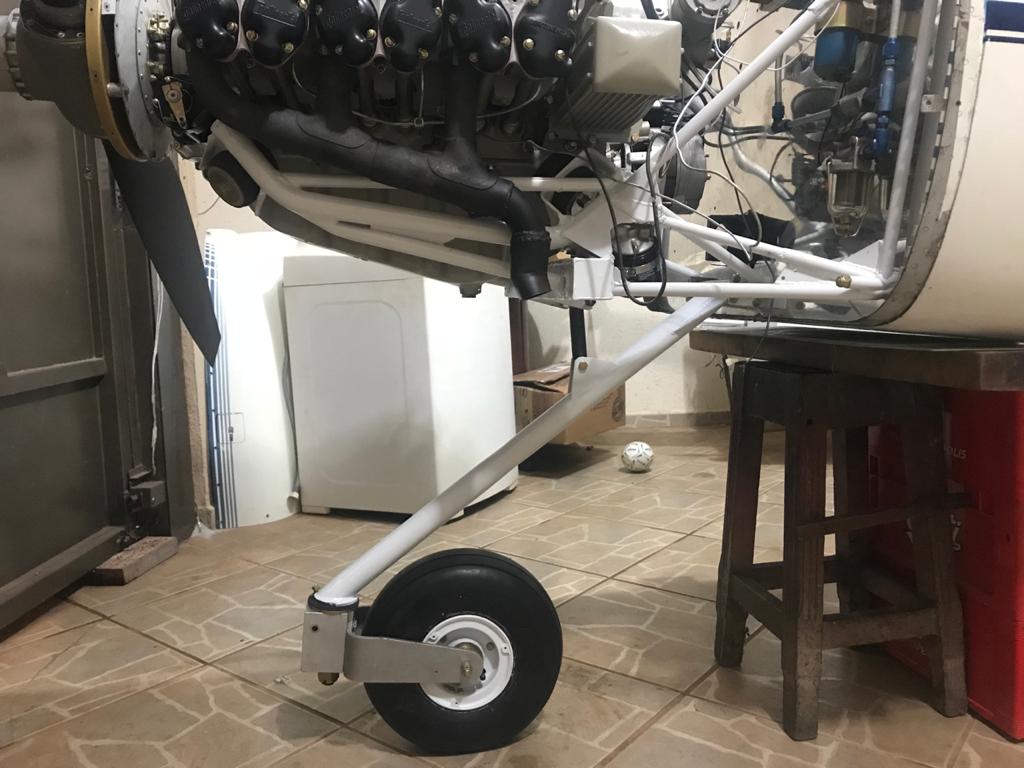

Good Morning!
Would it be possible for some CTs to have left the factory without the shock absorber?
Attachments
Gear 2.jpeg
Gear 1.jpeg
Guapo Jr
Tres Lagoas, Brazil
N61BE-Express CT Builder
